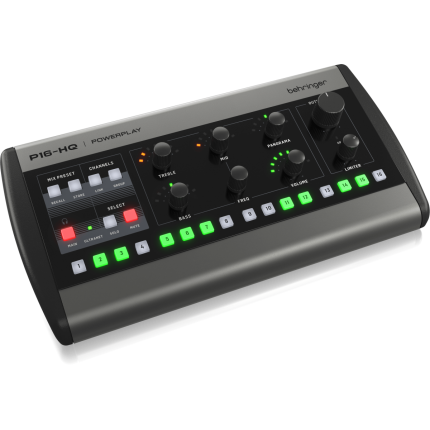

The Behringer P16-HQ builds on the success of P16-M, an industry favorite, with its new high-quality D-A converter, output amplifier, a design refresh and more! The P16-HQ is a great and affordable way to give performers control over their own monitor mix; leaving room for engineers to create the best overall mix possible.
The P16-HQ includes a new digital-to-analog converter with a dynamic range of 114dB, coupled with a new high-quality amplifier stage providing improved performance and volume, especially with low-impedance headphones and in-ears.

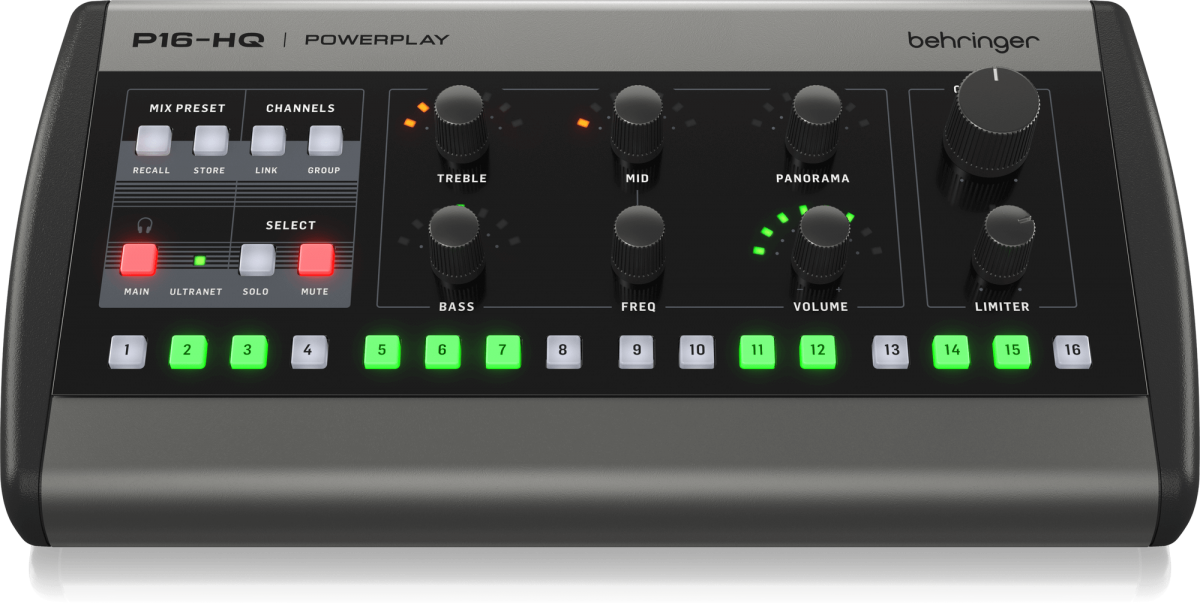

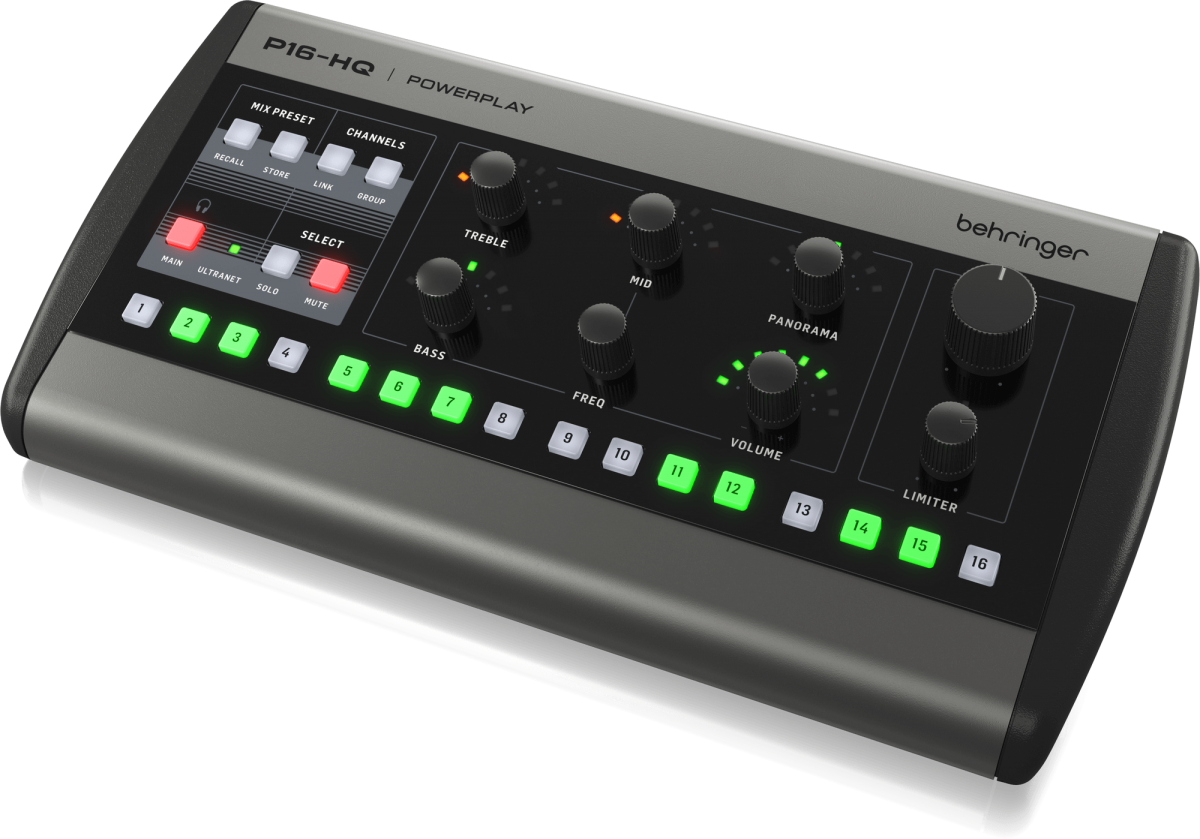

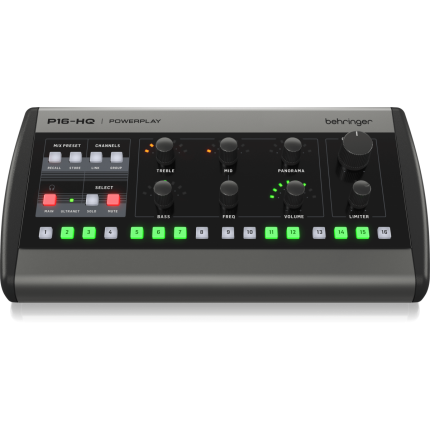

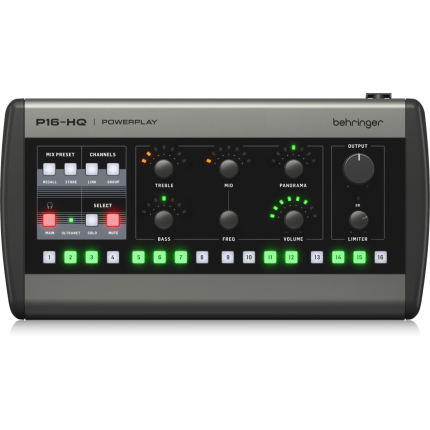

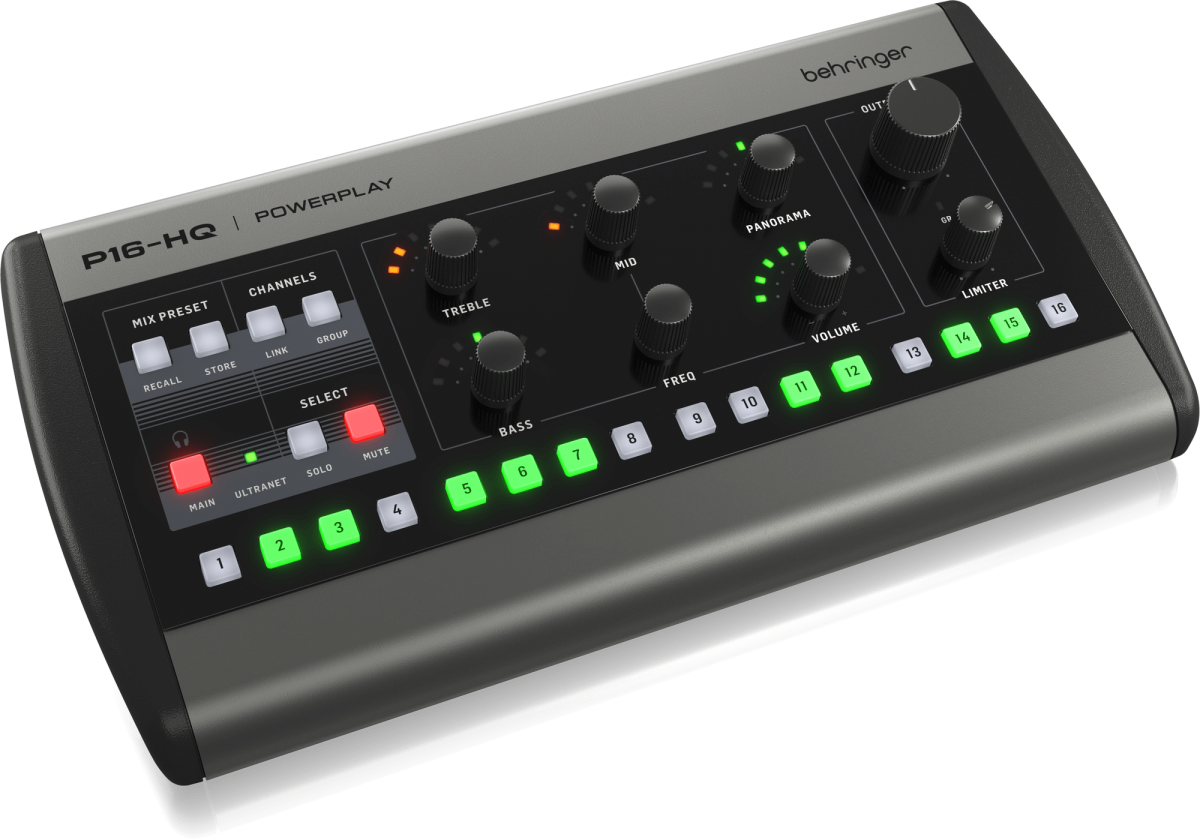

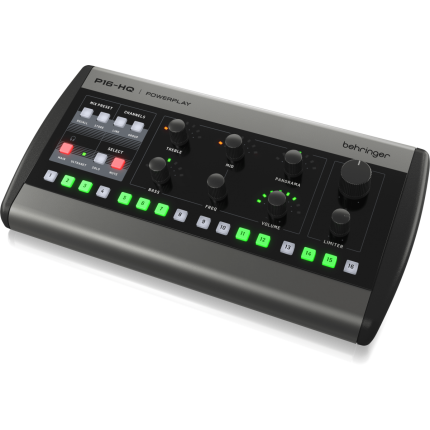

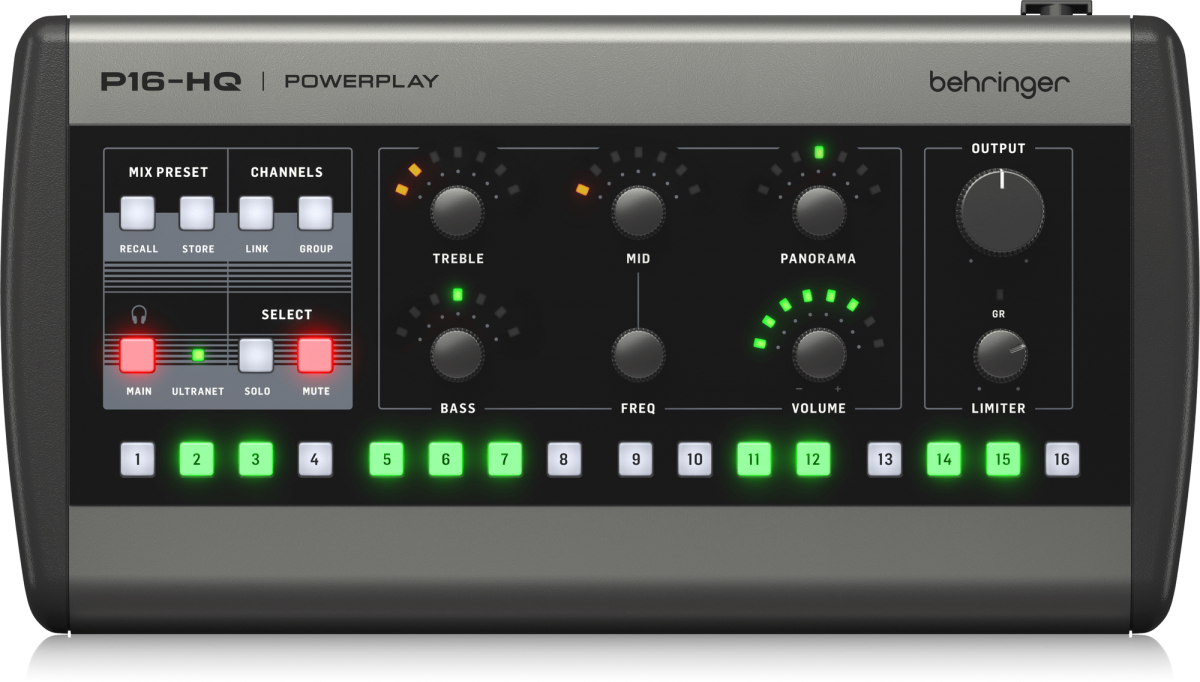

The P16-HQ sports a new look while maintaining the intuitive control surface that made P16-M so popular! All surface controls such as the 16 channel buttons, level, pan/balance controls have their own backlighting and LED indicators. All knobs and buttons are easily visible thanks to the backlighting and LED indicators added across the control surface. This allows the user to adjust on-the-fly, even on a dimly lit stage.

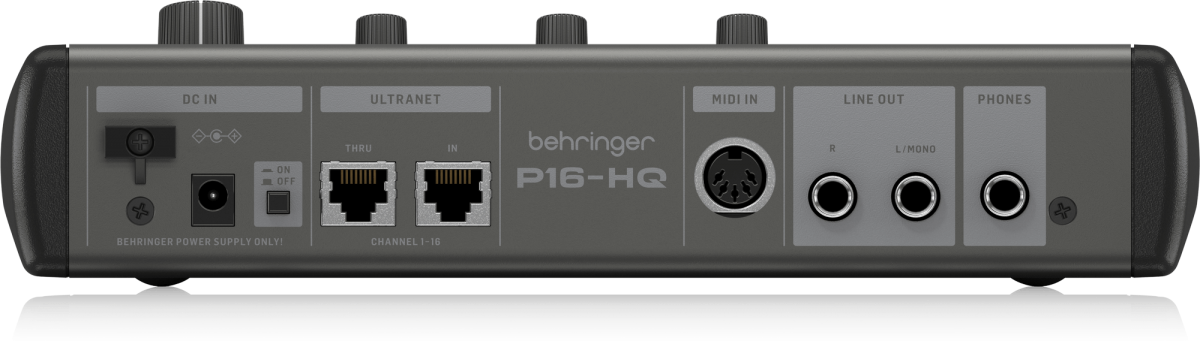

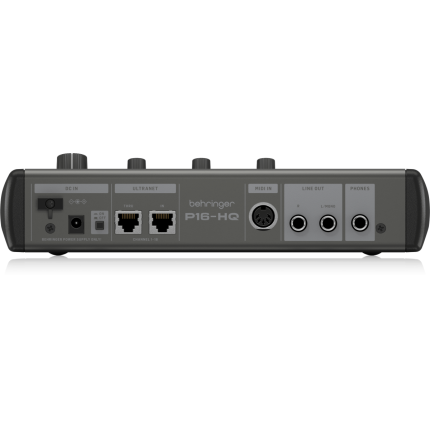

Audio Connections
Phones
1/4" TRS, stereo
Line out
2 x 1/4" TS, unbalanced
Ultranet Thru / In
2 x RJ45
MIDI in
5-pin MIDI connectorPerformance Line Out
Frequency response
20 Hz - 20 kHz (+0 / -0.5 dB)
THD+N
0.002 % typ.
Residual noise
-99 dBu unweighted /
-102 a-weighted
Crosstalk L / R
-75 dB
Output impedance
1 kΩ
Max. output level
+12.5 dBu @ 200 kΩ load /
+2,7 dBu @ 600 Ω loadPerformance Phones Out
Frequency response
20 Hz - 20 kHz (+0 / -0.1 dB)
THD+N
typ. 0.002 % / 0.007 % @
350 mW output power
Residual noise
-94.5 dBu unweighted /
-97.5 dBu A-weighted
Crosstalk L / R
-90 dB
Max. output level
50 mW @ 600 Ω load
100 mW @ 300 Ω load
400 mW @ 30 Ω loadControls
Equalizer
Bass: ±12 dB @ 100 Hz, shelving
Mid: ±12 dB, semi-parametric
Frequency: 100 Hz to 10 kHz, adjustable
Treble: ±12 dB @ 10 kHz
Output
Limiter: Ratio ∞: 1
Level: -20 to +15 dBu (Phones)Dimensions:
Dimensions
(H x W x D)
6.3 x 25.7 x 13.4 cm
Weight 0.8 kg
