Powerful and Fully Featured Standalone Digital Audio System Processing with Peerless Credentials
The LMX 88 provides an 8 x 8 analog I/O, 8 × 8 AES3 digital I/O, 8 × 8 Dante networked I/O and two interfaces of AES50 where up to 24 channels from the up to 96 AES50 channels can be selected and used as inputs or outputs – this makes the signal routing very flexible. The 16 input routers have four fully user-programmable priorities for redundant input operation and provide seamless failover between the inputs.Going LMX at FOH with Seamless Console Switch Through Scenes
The LMX 88 is a versatile centerpiece that allows you to easily manage the signal flow. It can receive signals from multiple consoles and allows for easy switching or mixing of those signals for distribution to your sound system. With the introduction of Scenes, you can pre-program any combination of signal flow and easily recall them using the front panel or the Lake Controller Software. Additionally, you can configure the GPI on the rear panel to activate a Scene using a custom switch for seamless console switching.Signal Flexibility
LMX 88 provides the ultimate combination of input/output signal flexibility and fail-safe operation. Audio inputs are accepted via the Dante network and AES50 as well as on connectors for AES3 digital and analog.Simple programming in Lake Controller allows multiple, user-configured “Scene” presets to be stored (input scenarios). In addition, as with all Lake Dual Redundant products Dante Audio switch seamless between Primary and Secondary, and Control can also be used on either Primary or Secondary interface.
LMX 88 provides a total of sixteen input routers which can be independently configured with up to four input fail-over priority settings. And the output of any of these input routers can go to any of the Modules via the Module Input Mixer, also be patched directly to any analog, AES3, Dante/AES67 or AES50 output – without using any of the valuable Module processing channels.
In The Box:

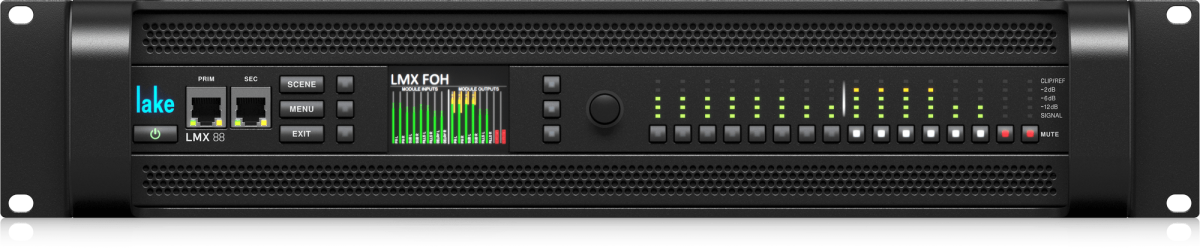

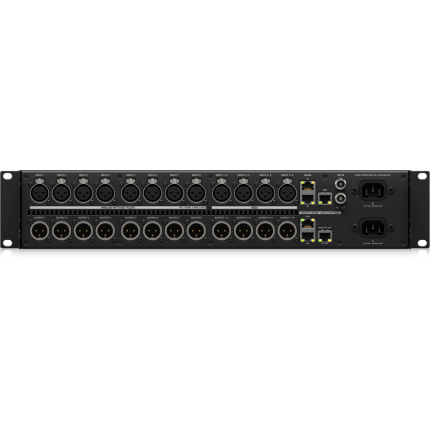

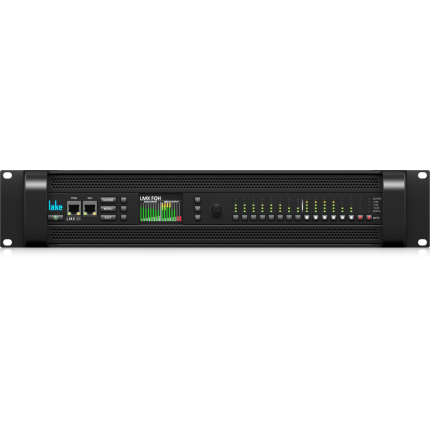

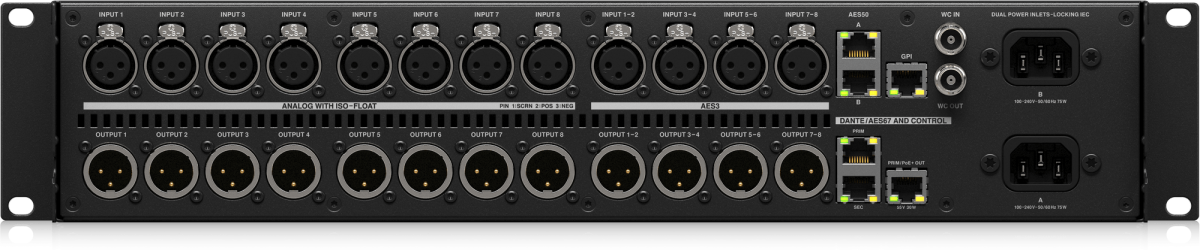

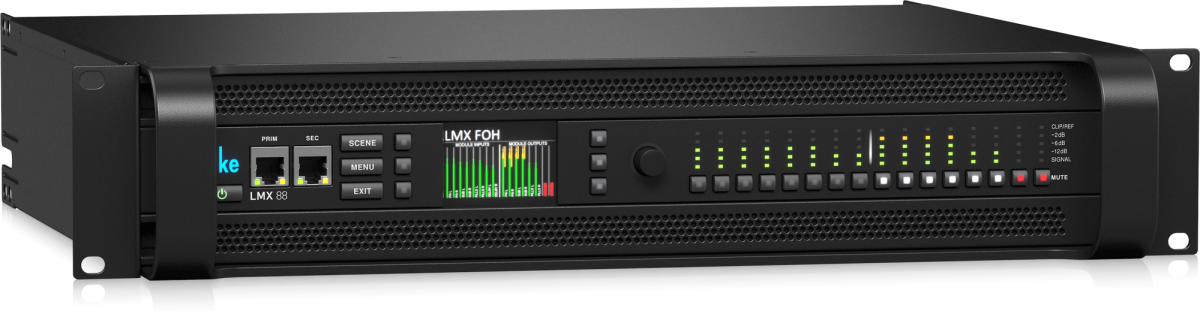

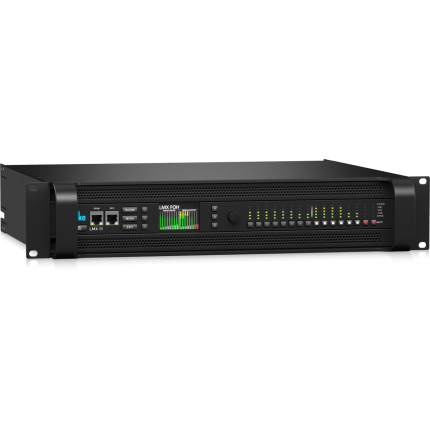

Lab Gruppen LMX 88 Audio System Processor for System Control in High-Performance Applications
Analog
Inputs 8x inputs with Iso-Float™ ground
isolation configurable per blocks of 4
Outputs 8x outputs
Frequency Response, +/-0.05 dB, 20 Hz to 20 kHz
analog-to-digital
Frequency Response, +/-0.2 dB, 20 Hz to 20 kHz
digital-to-analog
THD+Noise, Inputs 0.0015% typical at 1 kHz
THD+Noise, Outputs 0.0008% typical at 1 kHz
Dynamic Range, Inputs 126 dB
Dynamic Range, Outputs 116 dB
Input Impedance 20 kOhm balanced, 10 kOhm
unbalanced
Output Impedance 50 Ohm
Maximum Input level +26 dBu
Input Sensitivity Settings for +21 dBu
Digital Full-Scale
Maximum Output level +21 dBu
Crosstalk, inputs -108 dB, 20 Hz to 20 kHz
Crosstalk, outputs -98 dB, 20 Hz to 20 kHz
Common Mode Rejection >70 dB, 20 Hz to 20 kHz
Ratio (CMRR)
AES3/EBU with Sample Rate ConvertAES3/EBU with Sample Rate Converts available
Inputs and Outputs 8x inputs, 8x outputs
ASRC Yes, high quality low latency
available per digital input
Supporting Sample Rates 44.1 kHz, 48 kHz, 88.1 kHz,
96 kHz, 176.4 kHz, 192 kHz
(I/O individually selected)
Supported Resolutions Up to 24-bit
THD+Noise (limits) -135 dB at 96kHz and -125 dB at 44.1
kHz sample rate
THD+Noise (typical) -145 dB at 96kHz and -138 dB at 44.1
kHz sample rate
Dynamic Range Base48 -144 dBFS, Base44 -142 dBFSPower supply features
Mains connectors 2x Locking IEC
Universal Yes
Seamless continued operations if Yes
mains lost on one PSUPhysical
Dimensions (W/H/D) 483 x 88 x 404mm
(19" x 2 U x 16")
Weight 6.6 kg (14.6 lbs.)
