Yamaha MTX3 Matrix Processor

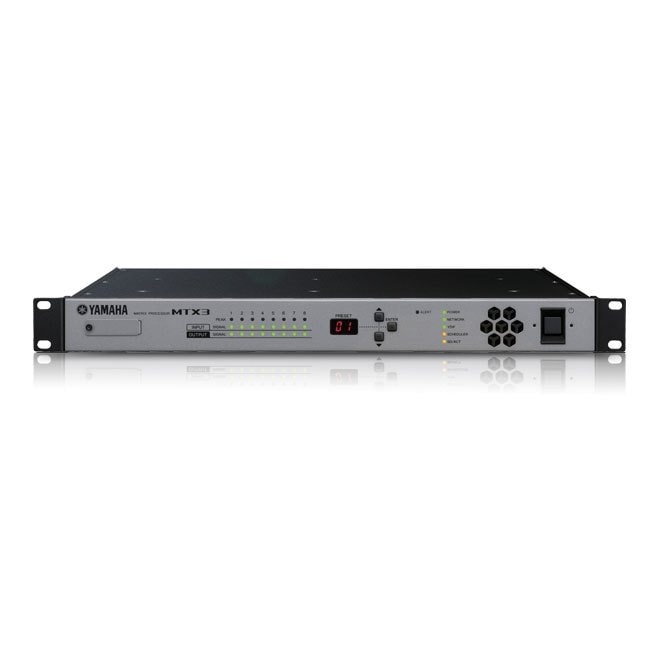

The MTX3 from Yamaha is a matrix processor that boasts versatile features that are essential tools for applications ranging from retail stores to restaurants, banquet rooms, and more. Central to your system’s processing functions, the MTX3 lets you configure, program, and manage your sound using its intuitive interface to control Yamaha’s MTX Editor software application.

Versatile Input/Output configuration
The MTX Series feature a combination of analogue and digital. Dante and YDIF connections meaning there should always be sufficient inputs & outputs for the scale of your installation.

Versatile Input/Output configuration

Overview: I/O
A closer look at the inputs and outputs of the MTX and MRX processors and provide an overview of the processing available in each one.

SD Memory Card Slot for playback
The MTX Series feature an input/output configuration that is ideal for a wide range of applications: 8 mono inputs (mic/line), 2 stereo inputs (line) and 16 digital inputs via YDIF. The output side consists of 8 line-level mono outputs and 16 digital outputs via YDIF. MTX processors also feature an SD Card Slot for playback of MP3/WAV files stored on an SD Memory Card. The Event Scheduler function allows you to play back these files as music, announcements or chimes—or even trigger external devices with a GPI output—at scheduled times, as well as recall presets stored within the MTX.

Easily increase system inputs and outputs.
The EXi8/Exo8 are input/output expanders for the MTX/MRX Series. EXi8 converts the analog mic/line signal to digital and transmits to the MTX via Yamaha's proprietry YDIF connection. The preamps for EXi8 can be remotely controlled from an MTX/MRX Editor.

EXo8 also connects to the system via YDIF and features 8ch of DA converters that convert the digital output to high quality analog signal.

MTX Digital Network System
Using two types of networking in MTX systems can significantly reduce installation cost and time. The combination of YDIF for shorter system connections and DANTE for larger installations can considerably improve design flexibility.

Audio Network for MTX System
MTX processors feature the newly developed YDIF digital transmission format; a unique proprietary Yamaha technology that delivers 16ch audio and word clock transmission via standard CAT5 Ethernet cable. YDIF can be used for cascading multiple MTX Series or for feeding audio signal to XMV Series power amplifiers with very simple cabling up to 30 metres.

Distribution Mode

- Max. 16ch of audio can be flowed from upper stream device to lower stream device.

Cascade Mode

- Can be used as 8ch cascade buses specifically for MTX.

- Communication can be between multiple MTX.

Daisy Chain Network
When building a simple system with a small number of devices. It is recommended to use Daisy Chain. Since Dante can transfer both control and audio signals with one cable, no network switches are required for Daisy Chain mode.

Star Network
In a star network, each device is connected to a central hub. Using a GbE-compatible network switch enables you to configure a wide-band, large-scale network.

Redundant Network
If it is necessary for higher resiliency against unexpected network problems, it is recommended to use redundant network.

Support for Dante Domain Manager, AES67 and Dante Device Lock
Supports the "Dante Domain Manager" audio network interconnectivity standard (update to version 3.31). Audinate Corporation's "Dante Domain Manager" is now supported. Audinate Corporation's "Dante Domain Manager" is network administration software that provides user authentication and role-based security settings. Now you can construct a safe and scalable sound system based on Dante infrastructure.

Dante-enabled model of the MTX5-D signal processor now support the AES67 audio network interconnection standard. This allows connection via AES67 to audio networks such as Ravenna, Q-LAN, or Livewire, increasing the expandability of the system.

Also supported is Dante Device Lock, which prevents a third party from modifying Dante settings. This can increase system security in environments such as concert halls where an outside operator is expected to operate the system or bring in equipment.

Smart, Flexible Paging System for Large Commercial Spaces
The PGM1 paging station and PGX1 paging expander are designed to work specifically with MRX7-D or MTX5-D. They work using PoE and connect to the network via Dante. Each PGM1 can be expanded with up to two PGX1 units and up to 4 units of PGM1 can be connected to a single system.
