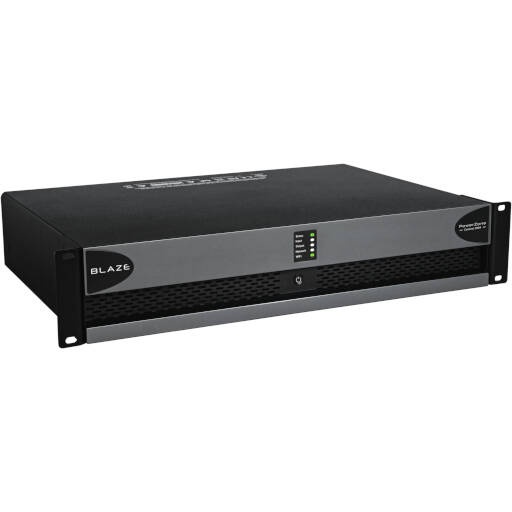

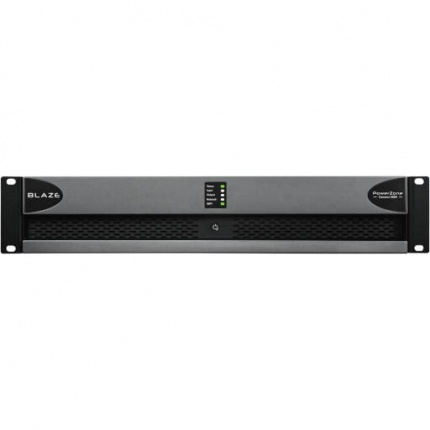

The PowerZone Connect 2004 is a solid, reliable, full rack, DSP amplifier with network connection for easy configuration and control.
Features
• Full rack form factor
• Full-matrix DSP configuration via PowerZone™ Control web app (built-in)
• Hybrid power distribution in both Lo-Z and Hi-Z
• Powered by Pascal UMAC™ Class-D technology
• Flexible power sharing across output channels
• UREC™ universal power supply with PFC
• S/PDIF input/output
• Configurable GPIO
• ErP and Energy Star compliant
• UL listed audio equipment
PowerZone™ Connect 2U series
The PowerZone™ Connect 2U series is a line of ultra-reliable, full-matrix DSP-enabled Class-D amplifiers that delivers exceptional system configuration and flexible output, with a total system power ranging from 1000W to 3000W. The PowerZone™ Connect 2U series powers both conventional low-impedance (2Ω to 16Ω) loudspeakers and constant voltage (70V/100V) transformer-coupled loudspeakers, and features automatic power-sharing technology for proportional distribution in both Lo-Z and Hi-Z modes. Our intuitive PowerZone™ Control web app is built into all our PowerZone™ Connect amplifiers for easy system setup. PowerZone™ Control facilitates effortless customization of even the most challenging audio/voice systems by delivering many DSP configuration options and tuning features, including multi-zone setup, input mixing, priority and ducking, restriction, input and output EQ, S/PDIF output routing, high-pass filter, speaker presets, delay, Wall-S1 controller configuration, Sine generator, and much more. The amplifiers have built in WirelessAccess-Point (WAP) for the simple connection and easy system setup via Wi-Fi.

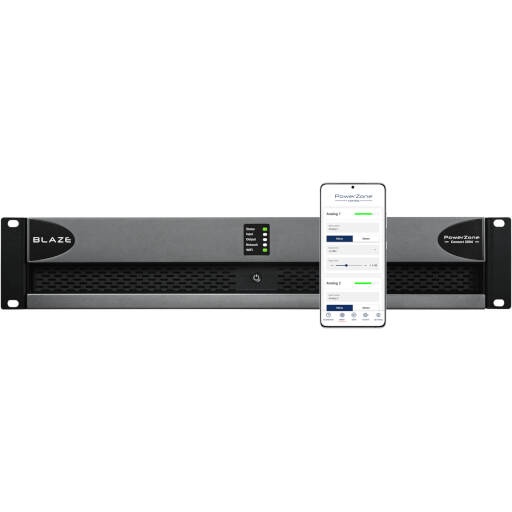

Our web app, PowerZone™ Control, is the most versatile DSP controller available for configuring audio/voice systems in locations requiring multi-zone audio set up with multiple mic talk overs. PowerZone™ Control facilitates effortless customization of even the most detailed audio/voice systems and adept management of multiple DSP configurations and tuning features, such as multi-zone setup, input mixing, priority and ducking, restriction, input and output EQ, S/PDIF output routing, high-pass filter, speaker management and presets, delay, Wall-S1 controller configuration, Sine generator, and much more. PowerZone™ Control caters to the demanding requirements of advanced system installs in locations such as retail stores, restaurants, hotels, educational facilities, theatres, bars, cafes, fitness locations, vast hospitality spaces, and spaces with multiple meeting/conference rooms. PowerZone™ Control is embedded in our PowerZone™ Connect full Matrix DSP amplifiers, and can be accessed from any device and browser via the PowerZone™ Connect built-in Wi-Fi or RJ45 network port.
Application
- Shopping Malls
- Large scale paging & Distribution
- Auditoriums
- Hotels & Conferences
- Entertainment
- CasinosChannels: 4 x Lo-Z/2 x Hi-Z
Output Power @ 2Ω: 4 x 500 W (SE)
Output Power @ 4Ω: 4 x 500 W (SE) 2 x 1000 W (BTL)
Output Power @ 8Ω: 4 x 250 W (SE) 2 x 1000 W (BTL)
Output Power @ 70V: 2 x 1000 W (BTL)
Output Power @ 100V: 2 x 1000 W (BTL)
Power Consumption: 700 W
Dimensions: 88 x 440 x 332 mm (3.5 x 17.3 x 13.1 in)
Weight: 7.4 kg
Output Voltage: 65 Vp / 130 Vpp (SE unloaded) 130 Vp / 260 Vpp (BTL unloaded)
Total System Power: 2000 W
Output Circuitry: UMAC™ Class D - full bandwidth PWM modulator with ultra-low distortion
Signal To Noise-Ratio: >106dB (A-weighted, 20Hz-20kHz, 8Ω load)
THD+N (typical): 0.05% (20Hz-20kHz, 8Ω load, 3dB below rated power)
Frequency Response: 20Hz-20kHz (+0/-0.25dB (8Ω load, 3dB below rated power)
Protection Circuits: Short circuit -, DC -, Undervoltage -, Temperature - and Overload protection
Power Supply: UREC™ universal mains switch mode power supply with Power Factor Correction (PFC) and standby converter
Operating temperature: 0-40°C
Operating Voltage/ Frequency.: Universal Mains, 100V-240V, 50Hz-60Hz
Standby Consumption: 0.5W
Accessories: 2x rack ears, 4 x adhesive feet
Power Ratings: Output power measured @ 1% THD at 120VAC 60Hz and 230VAC 50Hz
Heat DissipatationLOAD [OHM] 4 2 PIN [W] 346 378 POUT [W] 1/8th FULL POWER 250 250 EFFICIENCY [] 72.2 66.6 THERMAL LOSS [W] 96 128 THERMAL LOSS [BTU/h] 327 436
