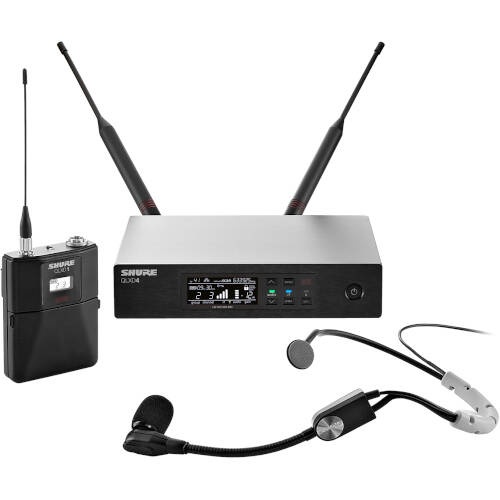

The Shure QLXD14/SM35 rackmount digital wireless headset microphone system provides instructors, presenters, and broadcasters with professional-quality audio, reliable RF performance, and secure AES 256-bit encryption. Rugged and easy-to-use, it is ideal for use in TV broadcast or sound-reinforcement applications in medium-sized venues and houses of worship, as well as A/V installations in conference, educational, and corporate facilities.
The QLXD14/SM35 operates in the UHF band to transmit pristine 24-bit/48 kHz digital audio with clarity, accurate low end, and crisp transient response. It utilizes Digital Predictive Switching Diversity to protect the transmission from interference and deliver solid RF signal stability without audio artifacts. You can run up to 60 mic channels at the same location.
The system comes with an SM35 cardioid performance headset microphone built for clear vocal reproduction. The headset's wearable design offers both comfort and a secure fit for long-wearing use and gives active performers the freedom to express themselves without having to sacrifice the sound quality found in traditional microphones. The bodypack transmitter provides up to 9 hours of operation on two AA batteries, with selectable 1/10mW RF power and a transmission range up to 330'.
The receiver features audio and RF meters, 60 dB of gain control, and both mic/line XLR and 1/4" instrument outputs. A large LCD screen and intuitive controls let you quickly make adjustments, even in low-light situations. Additional features include automatic frequency scanning, IR sync, and internal limiting to prevent clipping.
The Ethernet port allows multiple receivers to be easily networked together for simplified frequency coordination and deployment via Shure's Wireless Workbench (WWB) software.
In the Box:
Shure QLXD14/SM35 Digital Wireless Cardioid Performance Headset Microphone System
Shure QLXD4 Digital Wireless Receiver
Shure QLXD1 Digital Wireless Bodypack Transmitter
Shure SM35 Performance Headset Condenser Microphone (TA4F)
Hardware Mounting Kit
Short Rackmount Bracket with Link Bar
Long Rackmount Bracket
2 x Antennas
2 x BNC Antenna Adapters
2 x BNC Antenna Cables (22")
Ethernet Cable (3')
Shure PS24US Power Supply for Select Wireless Receivers
2 x AA BatteriesSystem
Wireless Transmission Digital UHF
Number of RF Channels 1760
Included Transmitters 1 x Bodypack
Diversity Antenna Diversity
RF Bandwidth 44 MHz
Frequency Step Size 25 kHz
Max Operating Range 330' / 100.6 m
Max Microphones per Band 60
Sample Rate/Resolution 48 kHz / 24-Bit
Latency 2.9 ms
Dynamic Range 120 dB
Encryption AES 256
Modulation Proprietary
Receiver
Form Factor Tabletop
Mounting Options Rackmount (with Included Hardware)
Rackmount Size 1 RU (1/2 Rack)
Antenna 2 x 1/2 Wave External, Detachable (Rear-Mount)
Number of Audio Channels 1
Audio I/O 1 x XLR 3-Pin Male Balanced Output
1 x 1/4" TRS Female Balanced Output
Gain Range -18 to +42 dB (1 dB Steps)
Pad 30 dB
Audio Output Level XLR Output:
+18 dBV (Line Level)
XLR Output:
-12 dBV (Mic Level)
1/4" Output:
+12 dBV (Instrument Level)
Phantom Power Protection On 1/4", XLR Output
Network I/O 1 x RJ45 (10/100 Mb/s)
Network Protocols DHCP, Manual IP
Impedance XLR Output:
100 Ohms (Balanced)
1/4" Output:
100 Ohms (Balanced)
1/4" Output:
50 Ohms (Unbalanced)
Adjacent Channel Isolation >70 dB
Spurious Rejection: >80 dB
Power Requirements AC/DC Power Adapter
AC/DC Power Adapter 12 VDC at 0.4 A, Center-Positive (Included)
AC Input Power 100 to 240 VAC, 50 / 60 Hz at 150 mA
Display & Indicators 1 x Backlit LCD (AF Level, Channel, Group, Menu Navigation, Metering, RF Level, Transmitter Battery Status)
1 x LED (Sync)
1 x LED (Peak)
Housing Metal
Operating Temperature 0 to 122°F / -18 to 50°C
Dimensions 7.8 x 1.6 x 5.9" / 197 x 41 x 151 mm (without Antennas)
Weight 1.7 lb / 777 g (without Antenna)
Transmitter
Form Factor Bodypack
RF Output Power 1 / 10 mW
Audio I/O 1 x TA4/Mini XLR 4-Pin Male Unbalanced Input (Lockable)
Audio Input Level 8.5 dBV / 7.5 Vpp
Gain Range 0 to 21 dB (3 dB Steps)
Frequency Response 20 Hz to 20 kHz
Sync Method IR
Antenna 1 x 1/4 Wave
Power Requirements Battery
Battery Type 2 x AA (Included)
1 x Shure SB900A (Not Included, Replaceable)
Approx. Battery Life 9 Hours (Alkaline)
Display & Indicators 1 x Backlit LCD (Channel, Group, RF Output Power)
Housing Aluminum
Dimensions 2.6 x 3.4 x 0.9" / 65 x 86 x 23 mm
Weight 4.9 oz / 138 g (without Batteries)
Microphone
Form Factor Headset
Sound Field Mono
Capsule Electret Condenser
Polar Pattern Cardioid
Frequency Range 40 Hz to 20 kHzH53 (534-598 MHz)
L51 (632-696 MHz)
Maximum SPL 153 dB SPL
Impedance 2400 Ohms
Sensitivity -59 dBV/Pa
Dynamic Range 102.5 dB
Output Connectors 1 x TA4/Mini XLR 4-Pin Female Unbalanced (Lockable)
Cable Length 3.61' / 1.1 m
Operating Voltage 5 to 10 V
Weight 2.54 oz / 72 g
