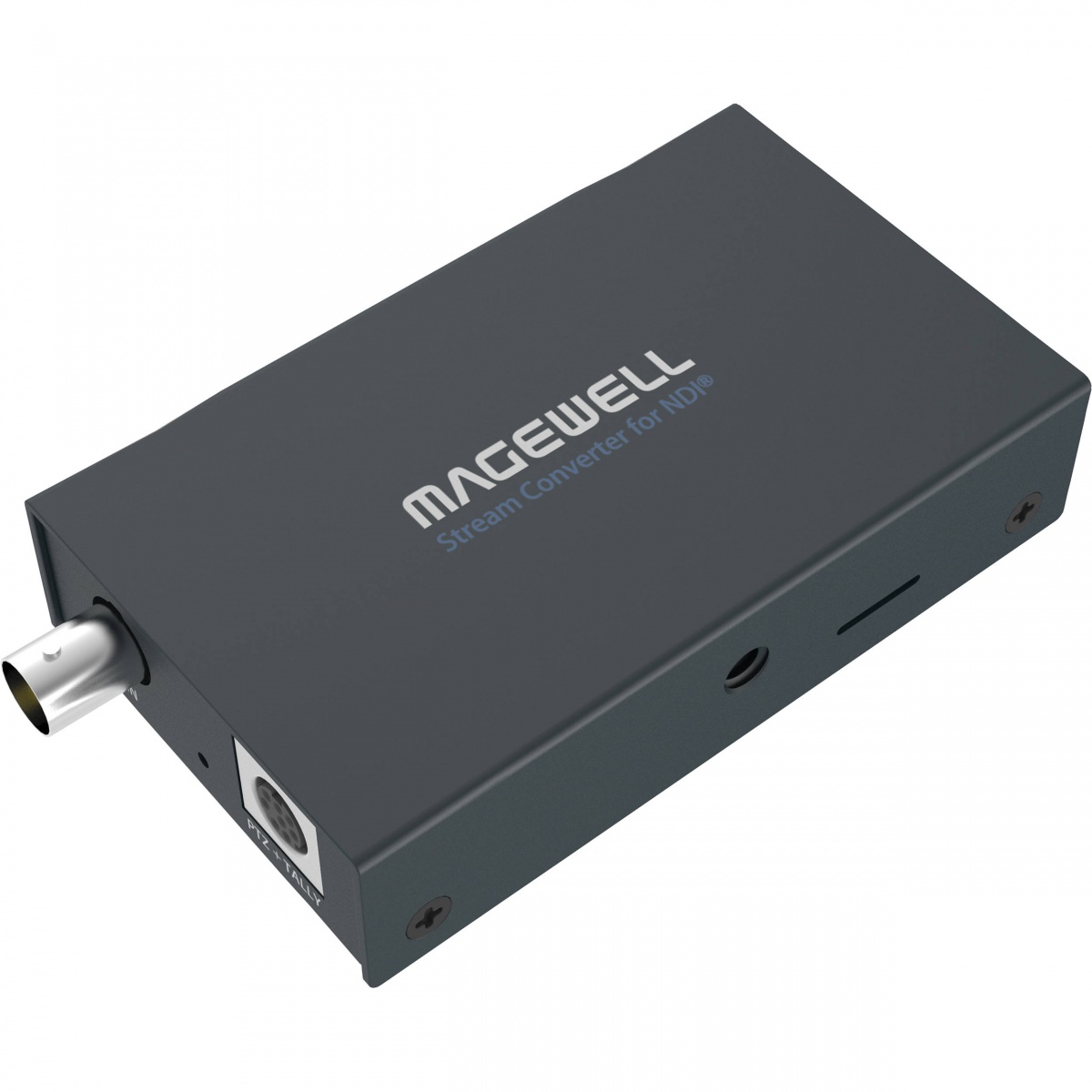

The Pro Convert SDI TX 1-Channel NDI Encoder from Magewell allows you to convert an SDI signal with embedded audio to an NDI stream. It supports resolutions up to 2048 x 1080 at 60p on both input and NDI output. The device can be powered via an included power adapter or over PoE using the NDI port. It features a 1/4"-20 thread for camera mounting and can be used in the studio or in the field thanks to a compact and robust design. There's also a PTZ+tally shared mini-DIN port for connecting tally lights or setting up NDI-based PTZ camera control. A tally light accessory comes included.
A companion Web UI allows assigning the device name, source name, and other settings. The encoder also has an on-board SD card slot but it is not functional at the time of this writing. Any future firmware updates will also be accessible via the Web UI.
The Pro Convert SDI TX Encoder additionally features an integrated cable equalizer that allows for SDI cables lengths up to 590'.
IN THE BOX
Magewell Pro Convert SDI TX 1-Channel NDI Encoder
5V, 2.1A Power Adapter
USB Type A to Type B Cable
Mini-DIN8 to DIN8 + DB9 Cable
Tally Light
L Bracket
Limited 1-Year WarrantySupported Web Browser
Microsoft Internet Explorer 11
Microsoft Edge
Mozilla Firefox version 61 and above
Google Chrome version 49 and above
Apple Safari 11.1 and above
Opera 55.0.2994.44 and aboveSupported Software
OBS
XSplit
vMix
VidBlasterX
Wirecast
streamstar SW
mimoLive

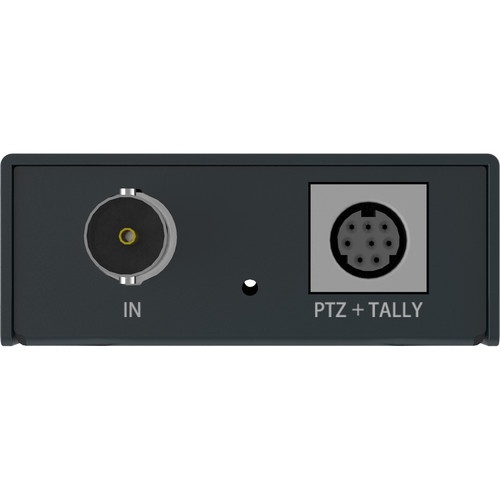

Any other NewTek NDI-enabled encoding or streaming softwareInput Interface
BNC
SD/HD/3G SDIStorage Interface
SD Card (functions to be developed)
PTZ + TALLY Control
Mini-DIN–8 jackMounting Hole
¼–20 mounting hole

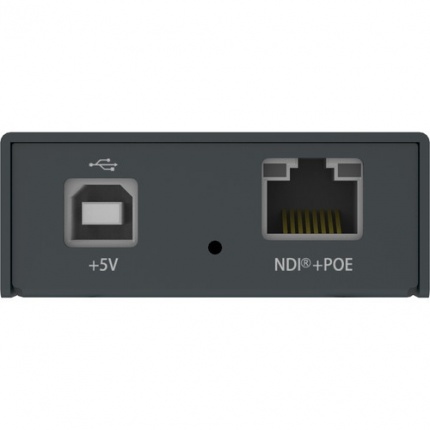

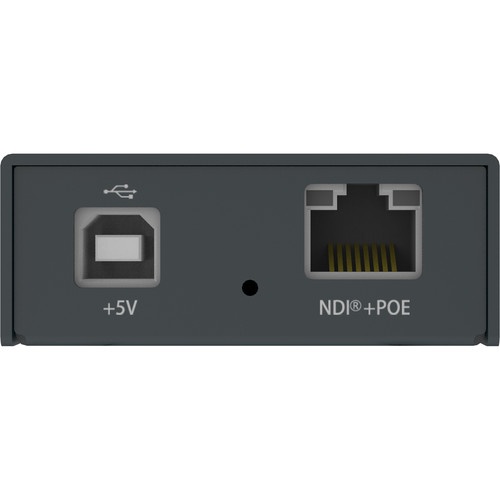

Network Interface
10/100/1000Mbps Ethernet
IEEE 802.3af PoEUSB Interface
USB2.0 Type B
5V/2.1A power supply
USB RNDIS/ECMInput Feature
Support input resolution at up to 2048x1080 60fpsSDI Specific Features
Integrated cable equalizer supporting cable lengths up to 180M for 3G-SDI signals
Support for SD/HD/3Ga/3Gb/3Gb-DL/3Gb-DS (SMPTE 2081) standards
Support for 2K (2048x1080) mode
Support for RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2 color sampling
Support for 8/10/12-bit color depth
Support for extraction of SMPTE 352 payload identifier
Support for up to 16 (mono) input and 16 output audio channels
Support for extraction of audio formation information & channel status data
Limited support for capture of one of dual link interfaces:
YCbCr 4:2:2 10-bit 1080p 50/59.94/60: captured as 1080i 50/59.94/60
YCbCr 4:4:4 10-bit: captured as 4:2:2
RGB 4:4:4: R/B sub-sampledNDI® Output Format
Support for 4:2:2 8-bit output
Support for up to 2048x1080 60fps output resolution
Support for NDI 4.1Video Processing Features
Support capture resolutions up to 2048x1080
Video brightness, contrast, saturation, hue adjustment
Video de-interlacing
Top field only
Bottom field only
Video aspect ratio conversion
Auto or manual selection of output aspect ratio
Video color format conversion
Auto or manual selection of input color format & quantization range
Auto or manual selection of output color format, quantization range & saturation range
Support for RGB, YUV BT.601, YUV BT.709, YUV BT.2020 input color formats
Support for YUV BT.601, YUV BT.709, YUV BT.2020 output color formats
Support for Limited or Full quantization range
Support for Limited, Full & ‘Extended gamut’ saturation range
Video frame rate conversion
Video mirror flipNDI® Source Name
Support for setting the device name shown in the system using Web UI. By default, the device name is ‘Pro Convert’.
Support for setting the source name shown in the system using Web UI. By default, the source name is ‘board-index + serial number’.
Support for setting board-index, from 0 to F, using the on-board rotary switchFirmware Upgrade
Support for manual update using Web UILED Indicator
Status LEDs indicate the working status of the device:
Power supply: on/off
Input signal: locked/unlockedForm Factor
100.9mm (L) x 60.2mm (W) x 23.3mm (H)Accessories
USB 2.0 A to B Cable
5V/2.1A power adaptor
Mini-DIN–8 (PTZ + TALLY) to RS232 (PTZ) + Mini-DIN–8 (TALLY)
Tally lights
L-bracket
LED matrix panel (optional)Power Consumption
5V max current: ~1.5A
Max power consumption: ~6WWorking Environment
Operating temperature: 0 to 45 deg C
Storage temperature: –20 to 70 deg C
Relative Humidity: 5% to 90% non-condensing
