Magewell Pro Convert HDMI TX 1-Channel NDI Encoder

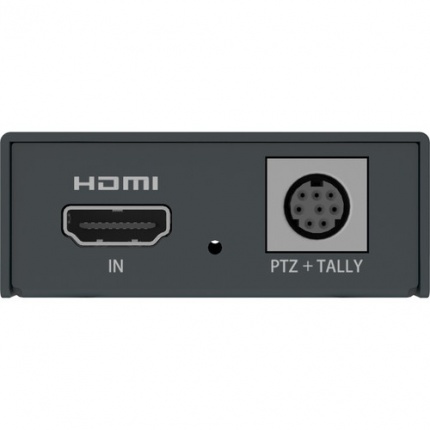

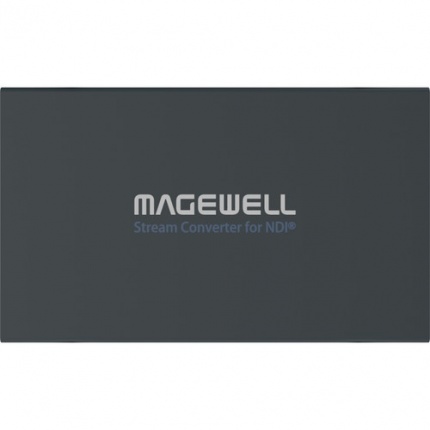

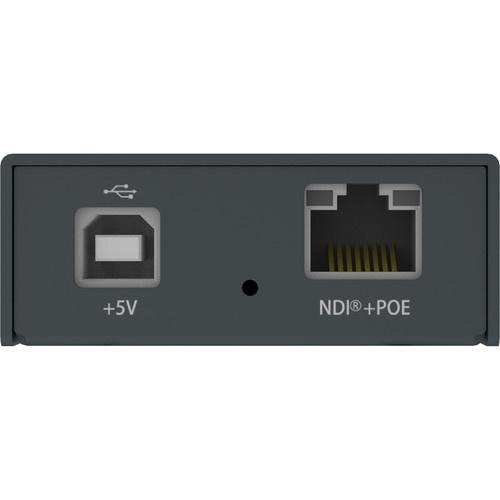

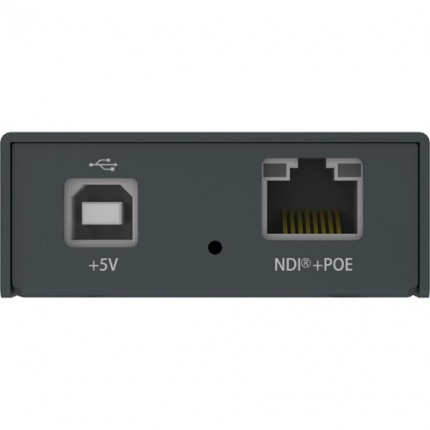

The Pro Convert HDMI TX 1-Channel NDI Encoder from Magewell allows you to convert an HDMI signal with embedded audio to an NDI stream. It supports resolutions up to 2048 x 1200 at 60p on both input and NDI output. The device can be powered via an included power adapter or over PoE using the NDI port. It features a 1/4"-20 thread for camera mounting and can be used in the studio or in the field thanks to a compact and robust design. There's also a PTZ+tally shared mini-DIN port for connecting tally lights or setting up NDI-based PTZ camera control. A tally light accessory comes included.
A companion Web UI allows assigning the device name, source name, and other settings. The encoder also has an on-board SD card slot but it is not functional at the time of this writing. Any future firmware updates will also be accessible via the Web UI.
The Pro Convert HDMI TX Encoder additionally features an adaptive HDMI equalizer that allows for HDMI cables lengths up to 98'.

IN THE BOX
Magewell Pro Convert HDMI TX 1-Channel NDI Encoder
5V, 2.1A Power Adapter
USB Type A to Type B Cable
Mini-DIN8 to DIN8 + DB9 Cable
Tally Light
L Bracket
Limited 1-Year Warranty

Specifications

Supported Web Browser (tested)
Microsoft Internet Explorer 11
Microsoft Edge
Mozilla Firefox version 61 and above
Google Chrome version 49 and above
Apple Safari 11.1 and above
Opera 55.0.2994.44 and above

Supported Software (tested)
OBS
XSplit
vMix
VidBlasterX
Wirecast
streamstar SW
mimoLive
Any other NewTek NDI-enabled encoding or streaming software

Input Interface
HDMI
DVI-D 1.0
HDMI 1.4

Storage Interface
SD Card (functions to be developed)

PTZ + TALLY Control
Mini-DIN–8 jack

Mounting Hole
¼–20 mounting hole

Network Interface
10/100/1000Mbps Ethernet
IEEE 802.3af PoE

USB Interface
USB2.0 Type B
5V/2.1A power supply
USB RNDIS/ECM

Input feature
Support input video resolutions at up to 2048x1200

HDMI Specific Features
165MHz HDMI receiver
Adaptive HDMI equalizer support for cables lengths up to 30M
Support for customized EDID
Support for extraction of AVI/Audio InfoFrames
Full colorimetry support
Support up to 2048x1200 4:4:4/4:2:2 60fps input signals
Support 8 input and 2 output IEC60958 audio streams
Support for extraction of audio formation information & channel status data
Support for extraction of video timing information
Support for extraction of 3D format information
Support for Side-by-Side Half, Top-and-Bottom, Frame Packing 3D mode.

NDI® Output Format
Support for 4:2:2 8-bit output
Support for up to 2048x1200 60fps
Support for NDI 4.1

Video Processing Features
Video processing pipelines with 160 Mpixels/s
Video brightness, contrast, saturation, hue adjustment
Video de-interlacing
Top field only
Bottom field only
Video aspect ratio conversion
Auto or manual selection of output aspect ratio
Video color format conversion
Auto or manual selection of input color format & quantization range
Auto or manual selection of output color format, quantization range & saturation range
Support for RGB, YUV BT.601, YUV BT.709, YUV BT.2020 input color formats
Support for YUV BT.601, YUV BT.709, YUV BT.2020 output color formats
Support for Limited or Full quantization range
Support for Limited, Full & ‘Extended gamut’ saturation range
Video frame rate conversion
Video mirror flip

NDI® Source Name
Support for setting the device name shown in the system using Web UI. By default, the device name is ‘Pro Convert’.
Support for setting the source name shown in the system using Web UI. By default, the source name is ‘board-index + serial number’.
Support for setting board-index, from 0 to F, through on-board rotary switch

Firmware Upgrade
Support for manual update using Web UI

LED Indicator
Status LEDs indicate:
Power supply indicator: on/off
Input signal indicator: locked/unlocked

Form Factor
100.9smm (L) x 60.2mm (W) x 23.3mm (H)

Accessories
USB 2.0 A to B Cable
5V/2.1A power adaptor
Mini-DIN–8 (PTZ + TALLY) to RS232 (PTZ) + Mini-DIN–8 (TALLY)
Tally lights
L-bracket
LED matrix panel (optional)

Power Consumption
5V max current: ~1.5A
Max power consumption: ~6W

Working Environment
Operating temperature: 0 to 45 deg C
Storage temperature: –20 to 70 deg C
Relative Humidity: 5% to 90% non-condensing
